MOTOR 11K

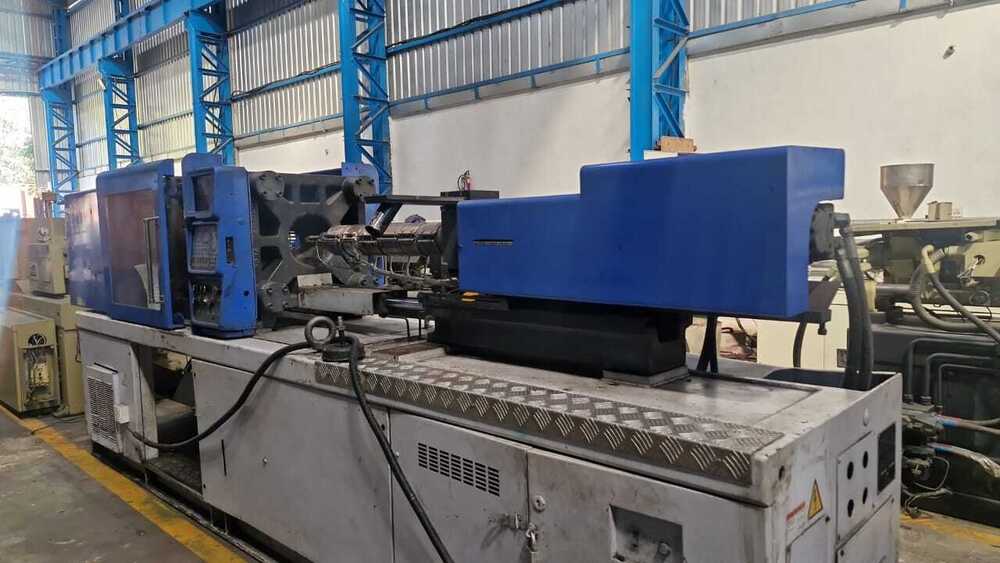

100-ton injection molding machine features a horizontal, automatic structure, a 15 kW power rating, a maximum injection pressure of 1990 BAR, a shot weight of around 210 grams, and a tie-bar space of 420mm x 420mm. Specifications can vary by model and age, with different units showing variations in injection pressure, shot weight, and screw diameter.
- Clamping Force: 100 Ton
- Power: Approximately 15 kW
- Machine Structure: Horizontal
- Automation Grade: Automatic
- Maximum Injection Pressure: Up to 1990 BAR (or 1990000 Pa)
- Shot Weight: Around 210 grams (for a specific model)
- Space Between Tie Bars: 420mm x 420mm
- Clamp Style: Toggle
- Mold Height: 200-500mm (for a specific model)
- Oil Tank Capacity: 250 liters (for a 1993 model)
Other Model-Specific Variations
-

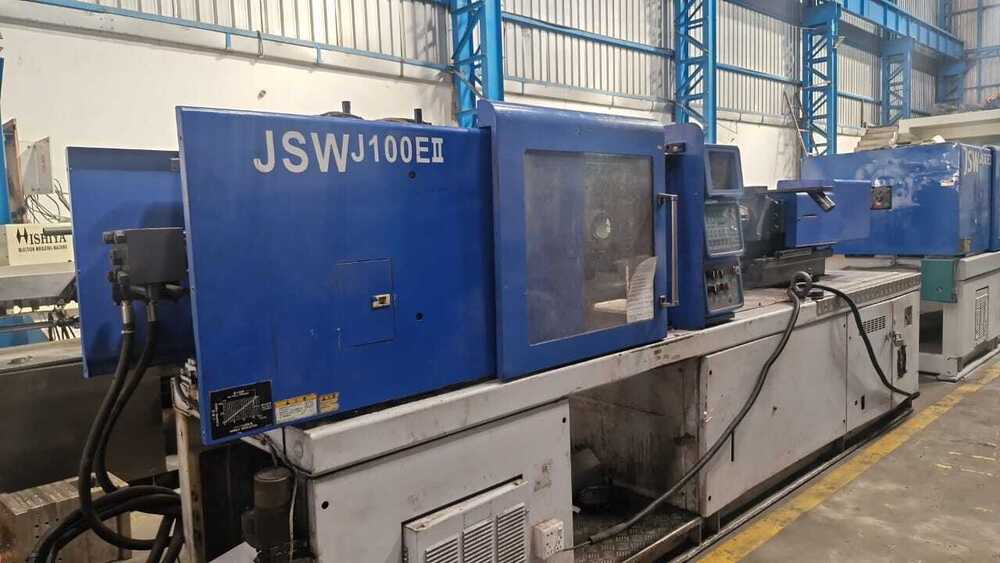

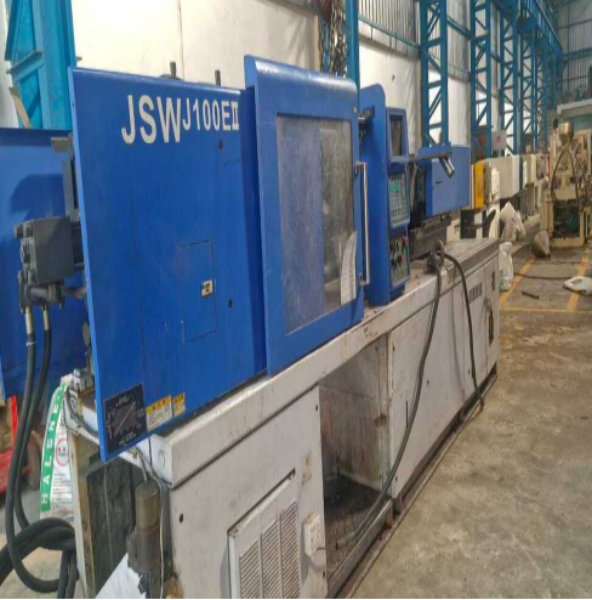

Model J100E:
This model from JSW also operates at 15 kW, with a 415V, 3-phase power supply.
-
Screw Diameter/L/D Ratio:
Specific models might have different screw diameters and L/D ratios, with one example showing a 35mm screw diameter and a 22.5mm L/D ratio for a 1993 unit.
